DESCRIPTION

Basic Info.

Model NO.	H07RN-F/H05RN-F
Sheath Material	CPE
Insulation Material	Rubber
Material Shape	Round Wire
Range of Application	Mine
Brand	Reps
Delivery Time	1 Month
Nominal Voltage	300/500V or 450/750V
Color	Black
Advantage	Factory
Transport Package	Optional
Specification	Multicore
Trademark	REPS
Origin	Anhui
HS Code	8544492100
Production Capacity	Us$5 Million - Us$10 Million

Packaging & Delivery

Package Size 100.00cm * 100.00cm * 100.00cm Package Gross Weight 1000.000kg

Product Description

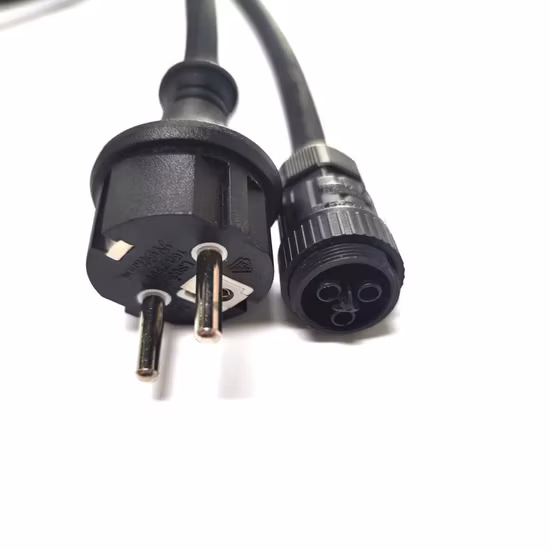

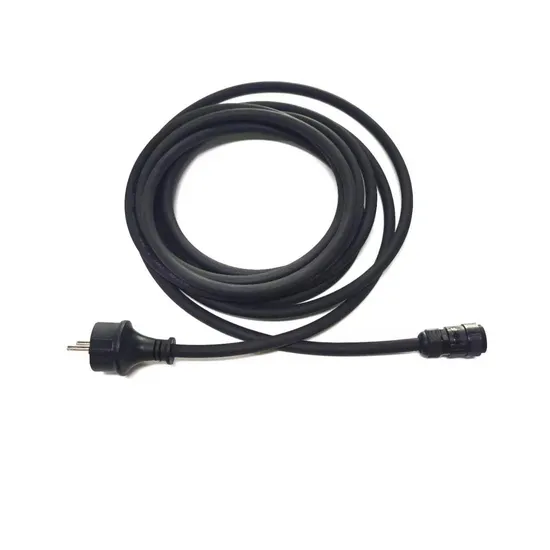

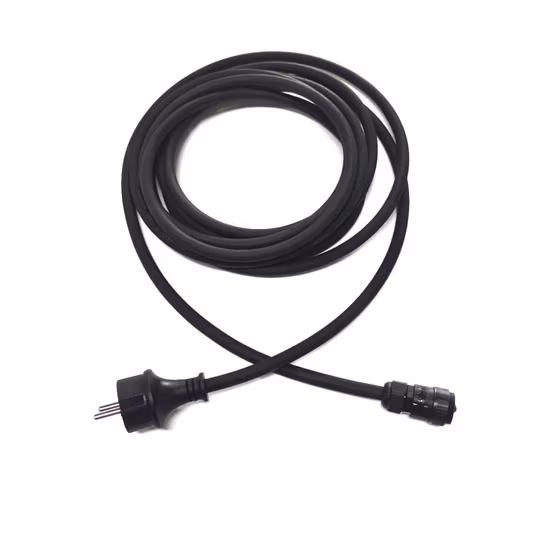

H05RN-F/H07RN-F Cable for Connecting Electrical Tools and Lamps Low Voltage Copper Conduct Rubber Cable

Conductor:	Plain copper, flexible class 5
Insulation:	Vulcanized rubber compound
Outer Sheath:	Synthetic rubber compound
Nominal Voltage U0/U :	H05RN-F 300/500 V H07RN-F 450/750 V
Test Voltage:	2500 V
Minimal Bending Radius:	Fixed installation:4D (D = external cable diameter)Moved installation8D
Temperature range:	-25°C till +60°C
Application:	Used for medium and heavy mechanical loads, in dry and wet areas, also outdoor. Could be installed under or on plaster, in rocks, concrete, but not in pre-stressed concrete. Cable suitable for fixed industrial and home installation, for operating conditions with possible fire or explosion hazard, for mobile energy users, machine tools and agricultural machines, for construction sites at medium mechanical loads, for large kettles, heating plates, hand lamps, electrical tools such as drills, circular saws and electrical tools for household use, same as for mobile engines or machines on construction sites and craftsman i.e. agricultural plants. Permitted fixed laying on crane and machine elements etc. Permitted voltages up to 1000 V AC at protected laying in tubes or devices, and as connecting rotor cable for engines. Also suitable for cooling installations. Resistant to oil, ozone and UV irradiation

Type: H05RN-F				Type: H07RN-F
Core * sactional	Approximate outer diameter	Approximate weight		Core * sactional	Approximate outer diameter	Approximate weight
mm²	mm	kg/km		mm²	mm	kg/km
2*0.75	6.8	68.5		1×1	5.2~6.5	50
2*1	7.3	81.2		1×1.5	5.7~7.1	65
				1×2.5	6.3~7.9	83
2*1.5	8.9	117.5		1×4	7.2~9.0	112
2*2.5	10.3	164.0		1×6	7.9~9.8	145
3*0.75	7.4	86.0		1×10	9.5~11.9	223
3*1	7.7	98.0		1×16	10.8~13.4	304
3*1.5	9.4	142.3		1×25	12.7~15.8	446
3*2.5	10.9	200.7		1×35	14.3~17.9	564
4*0.75	8.0	103.7		2×1	7.7~10.0	96
4*1	8.4	119.1		2×1.5	8.5~11.0	125
4*1.5	10.4	179.0		2×2.5	10.2~13.1	174
4*2.5	12.1	252.8		2×4	11.8~15.1	234
5*0.75	8.9	127.5		2×6	13.1~16.8	309
5*1	9.4	146.6		2×10	17.7~22.6	571
5*1.5	11.3	213.3		2×16	20.2~25.7	749
5*2.5	12.8	274.6		2×25	24.3~30.7	1097
6*0.75	9.9	150.6		2×35	27.3~34.6	1383
6*1	10.6	178.8		3×1	8.3~10.7	122
6*1.5	12.8	258.7		3×1.5	9.2~11.9	160
6*2.5	15.1	373.3		3×2.5	10.9~14.0	225
3*1.5+1*1	10.3	168.4		3×4	12.7~16.2	306
3*1.5+2*1	10.9	190.0		3×6	14.1~18.0	408
3*2.5+1*1.5	12.0	238.1		3×10	19.1~24.2	758
3*2.5+2*1.5	12.8	270.0		3×16	21.8~27.6	1014

Please consult us for more models
